Description

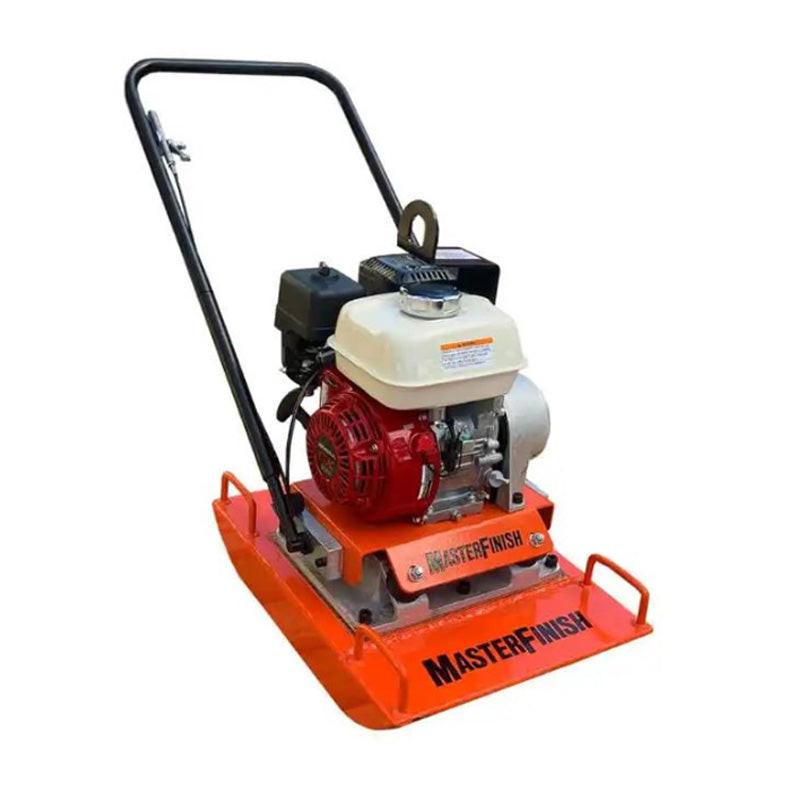

The Masterfinish 610H Plate Compactor is designed for efficient compaction and operator comfort in demanding job site conditions. It features a vibration-isolated reversible handle, reducing operator fatigue and allowing for easier control during use. Heavy-duty shock mounts minimise vibration transfer to both the engine and handle, ensuring a smoother and more comfortable operation.
The centrally mounted exciter is fully enclosed to provide an even distribution of compactive force across the entire base plate. It is grease-filled for durability and should be checked and re-greased every 500 hours using Shell Alvania R3 grease or an equivalent.
Specifications:
- Engine: Honda GX200
- Dimensions: 610 x 460 x 900mm
- Weight: 93kg
- Vibrating system: Eccentric rotation
- Centrifugal force: 19.8kN
- Frequency: 7000 VPM
- Compaction depth: Approx. 30cm
- Travel speed: 33cm/sec
- Hill climbing ability: Approx. 20°
- Motor oil capacity: 600cc
Warranty:
- 12-month machine warranty
- 36-month Honda engine warranty
